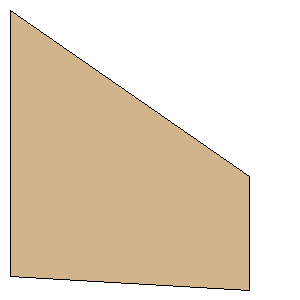

frenzyxl30.rkt Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 3.8750 inches (98.4250 mm) | | Tip Chord: | 1.6469 inches (41.8313 mm) | | Sweep Distance: | 2.4219 inches (61.5163 mm) | | SemiSpan: | 3.4875 inches (88.5825 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (88.5825 mm, 61.5163 mm) | | Point 3: | (88.5825 mm, 103.3475 mm) | | Point 4: | (0.0000 mm, 98.4250 mm) | | Width: | 3.4875 inches (88.5825 mm) | | Height: | 4.0688 inches (103.3475 mm) |
