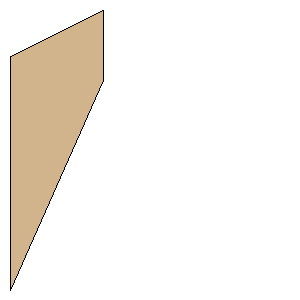

Rocketry Warehouse X-Celerator T Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 10.0000 inches (254.0000 mm) | | Tip Chord: | 3.0000 inches (76.2000 mm) | | Sweep Distance: | -2.0000 inches (-50.8000 mm) | | SemiSpan: | 4.0000 inches (101.6000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (101.6000 mm, -50.8000 mm) | | Point 3: | (101.6000 mm, 25.4000 mm) | | Point 4: | (0.0000 mm, 254.0000 mm) | | Width: | 4.0000 inches (101.6000 mm) | | Height: | 12.0000 inches (304.8000 mm) |
