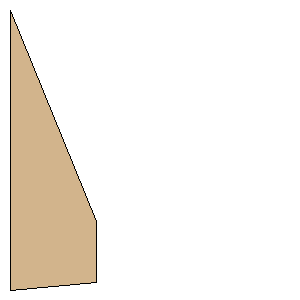

Rocket Boy Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 phenolic |
Download as PDF | Root Chord: | 19.5000 inches (495.3000 mm) | | Tip Chord: | 4.2500 inches (107.9500 mm) | | Sweep Distance: | 14.7541 inches (374.7541 mm) | | SemiSpan: | 6.0000 inches (152.4000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (152.4000 mm, 374.7541 mm) | | Point 3: | (152.4000 mm, 482.7041 mm) | | Point 4: | (0.0000 mm, 495.3000 mm) | | Width: | 6.0000 inches (152.4000 mm) | | Height: | 19.5000 inches (495.3000 mm) |
