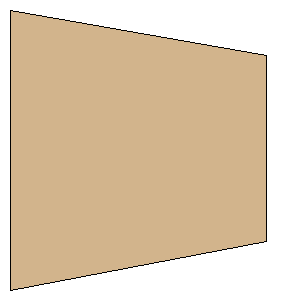

Vaughn Brothers - Blobbo Trapezo Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 phenolic |
Download as PDF | Root Chord: | 3.0000 inches (76.2000 mm) | | Tip Chord: | 2.0000 inches (50.8000 mm) | | Sweep Distance: | 0.4849 inches (12.3165 mm) | | SemiSpan: | 2.7500 inches (69.8500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (69.8500 mm, 12.3165 mm) | | Point 3: | (69.8500 mm, 63.1165 mm) | | Point 4: | (0.0000 mm, 76.2000 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 3.0000 inches (76.2000 mm) |
