Rocketry Parts Database >> Fins >>

Solar-Venture Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:G10 phenolic

Download as PDF

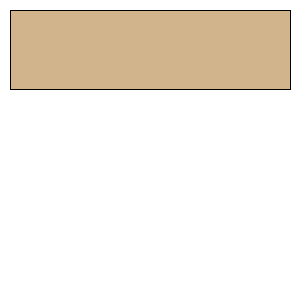

Root Chord:0.2500 inches (6.3500 mm)
Tip Chord:0.2500 inches (6.3500 mm)
Sweep Distance:0.0000 inches (0.0000 mm)
SemiSpan:0.8780 inches (22.3012 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(22.3012 mm, 0.0000 mm)
Point 3:(22.3012 mm, 6.3500 mm)
Point 4:(0.0000 mm, 6.3500 mm)
Width:0.8780 inches (22.3012 mm)
Height:0.2500 inches (6.3500 mm)
