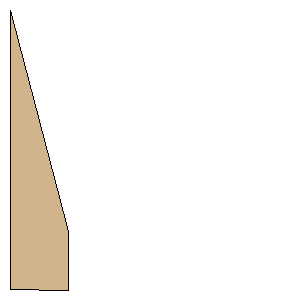

My Mind's Eye Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 phenolic |
Download as PDF | Root Chord: | 19.0000 inches (482.6000 mm) | | Tip Chord: | 4.0000 inches (101.6000 mm) | | Sweep Distance: | 15.0015 inches (381.0381 mm) | | SemiSpan: | 4.0000 inches (101.6000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (101.6000 mm, 381.0381 mm) | | Point 3: | (101.6000 mm, 482.6381 mm) | | Point 4: | (0.0000 mm, 482.6000 mm) | | Width: | 4.0000 inches (101.6000 mm) | | Height: | 19.0015 inches (482.6381 mm) |
