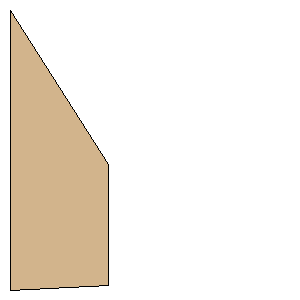

The Garderobe Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 phenolic |
Download as PDF | Root Chord: | 9.2500 inches (234.9500 mm) | | Tip Chord: | 4.0000 inches (101.6000 mm) | | Sweep Distance: | 5.1015 inches (129.5781 mm) | | SemiSpan: | 3.2500 inches (82.5500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (82.5500 mm, 129.5781 mm) | | Point 3: | (82.5500 mm, 231.1781 mm) | | Point 4: | (0.0000 mm, 234.9500 mm) | | Width: | 3.2500 inches (82.5500 mm) | | Height: | 9.2500 inches (234.9500 mm) |
