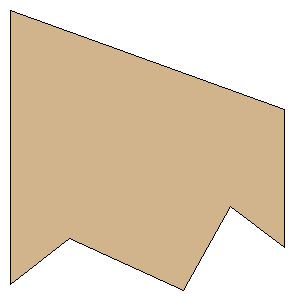

Anti-Crambaster Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | G10 phenolic |
Download as PDF | Point 1: | (0.0000 mm, 83.7700 mm) | | Point 2: | (18.3108 mm, 69.7812 mm) | | Point 3: | (52.8863 mm, 85.4973 mm) | | Point 4: | (67.4237 mm, 59.9586 mm) | | Point 5: | (83.7700 mm, 72.3748 mm) | | Point 6: | (83.7700 mm, 30.4898 mm) | | Point 7: | (0.0000 mm, 0.0000 mm) | | Width: | 3.2980 inches (83.7700 mm) | | Height: | 3.3660 inches (85.4973 mm) |
