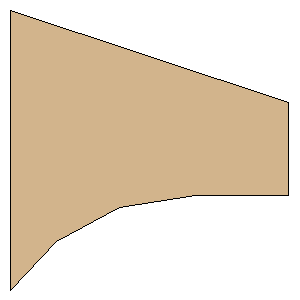

Thin Man Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | "G10 (PML 0.062"")" |
Download as PDF | Point 1: | (0.0000 mm, 38.3343 mm) | | Point 2: | (6.3500 mm, 31.7500 mm) | | Point 3: | (15.0427 mm, 27.0180 mm) | | Point 4: | (25.4000 mm, 25.4000 mm) | | Point 5: | (38.1000 mm, 25.4000 mm) | | Point 6: | (38.1000 mm, 12.7000 mm) | | Point 7: | (0.0000 mm, 0.0000 mm) | | Width: | 1.5092 inches (38.3343 mm) | | Height: | 1.5092 inches (38.3343 mm) |
