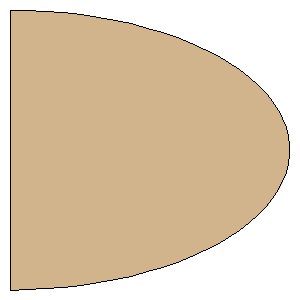

Giant Leap Rocketry Elipse Ellip Elliptical Fin Set

Manufacturer:Custom
Part Number:
Style:Elliptical Fin Set
Material:G10 (PML 0.093)

Download as PDF

Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(0.0000 mm, 0.0000 mm)
Point 3:(0.0641 mm, 0.0010 mm)
Point 4:(0.1279 mm, 0.0041 mm)
Point 5:(0.1912 mm, 0.0092 mm)
Point 6:(0.2537 mm, 0.0164 mm)
Point 7:(0.3151 mm, 0.0255 mm)
Point 8:(0.3753 mm, 0.0365 mm)
Point 9:(0.4339 mm, 0.0495 mm)
Point 10:(0.4907 mm, 0.0643 mm)
Point 11:(0.5455 mm, 0.0810 mm)
Point 12:(0.5981 mm, 0.0993 mm)
Point 13:(0.6482 mm, 0.1193 mm)
Point 14:(0.6957 mm, 0.1408 mm)
Point 15:(0.7403 mm, 0.1638 mm)
Point 16:(0.7818 mm, 0.1883 mm)
Point 17:(0.8202 mm, 0.2139 mm)
Point 18:(0.8551 mm, 0.2408 mm)
Point 19:(0.8866 mm, 0.2687 mm)
Point 20:(0.9144 mm, 0.2976 mm)
Point 21:(0.9385 mm, 0.3273 mm)
Point 22:(0.9587 mm, 0.3577 mm)
Point 23:(0.9749 mm, 0.3887 mm)
Point 24:(0.9872 mm, 0.4202 mm)
Point 25:(0.9954 mm, 0.4520 mm)
Point 26:(0.9995 mm, 0.4840 mm)
Point 27:(0.9995 mm, 0.5160 mm)
Point 28:(0.9954 mm, 0.5480 mm)
Point 29:(0.9872 mm, 0.5798 mm)
Point 30:(0.9749 mm, 0.6113 mm)
Point 31:(0.9587 mm, 0.6423 mm)
Point 32:(0.9385 mm, 0.6727 mm)
Point 33:(0.9144 mm, 0.7024 mm)
Point 34:(0.8866 mm, 0.7313 mm)
Point 35:(0.8551 mm, 0.7592 mm)
Point 36:(0.8202 mm, 0.7861 mm)
Point 37:(0.7818 mm, 0.8117 mm)
Point 38:(0.7403 mm, 0.8362 mm)
Point 39:(0.6957 mm, 0.8592 mm)
Point 40:(0.6482 mm, 0.8807 mm)
Point 41:(0.5981 mm, 0.9007 mm)
Point 42:(0.5455 mm, 0.9190 mm)
Point 43:(0.4907 mm, 0.9357 mm)
Point 44:(0.4339 mm, 0.9505 mm)
Point 45:(0.3753 mm, 0.9635 mm)
Point 46:(0.3151 mm, 0.9745 mm)
Point 47:(0.2537 mm, 0.9836 mm)
Point 48:(0.1912 mm, 0.9908 mm)
Point 49:(0.1279 mm, 0.9959 mm)
Point 50:(0.0641 mm, 0.9990 mm)
Point 51:(0.0000 mm, 1.0000 mm)
Point 52:(0.0000 mm, 1.0000 mm)
Width:0.0393 inches (0.9995 mm)
Height:0.0394 inches (1.0000 mm)
