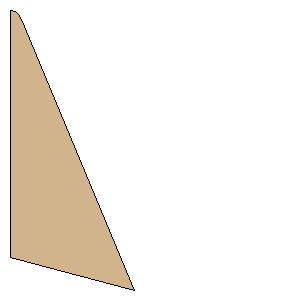

AIM-9B Sidewinder Freeform Fin S Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | G10 (PML 0.093) |
Download as PDF | Point 1: | (0.0000 mm, 77.5340 mm) | | Point 2: | (38.9240 mm, 87.6220 mm) | | Point 3: | (3.5940 mm, 3.0230 mm) | | Point 4: | (2.6330 mm, 1.3400 mm) | | Point 5: | (1.6720 mm, 0.3790 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 3.0525 inches (77.5340 mm) | | Height: | 3.4497 inches (87.6220 mm) |
