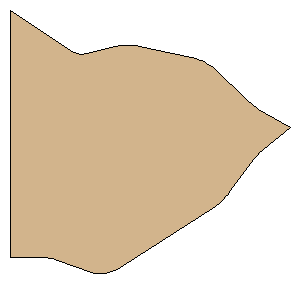

Pigs Ear Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | G10 (PML 0.125) |
Download as PDF | Point 1: | (0.0000 mm, 112.6240 mm) | | Point 2: | (15.0496 mm, 112.6240 mm) | | Point 3: | (15.7119 mm, 112.6355 mm) | | Point 4: | (16.3733 mm, 112.6700 mm) | | Point 5: | (17.0331 mm, 112.7275 mm) | | Point 6: | (17.6906 mm, 112.8080 mm) | | Point 7: | (18.3448 mm, 112.9112 mm) | | Point 8: | (18.9951 mm, 113.0371 mm) | | Point 9: | (19.6406 mm, 113.1855 mm) | | Point 10: | (20.2805 mm, 113.3563 mm) | | Point 11: | (20.9142 mm, 113.5492 mm) | | Point 12: | (21.5407 mm, 113.7640 mm) | | Point 13: | (37.2260 mm, 119.4488 mm) | | Point 14: | (38.7175 mm, 119.6616 mm) | | Point 15: | (40.2211 mm, 119.7560 mm) | | Point 16: | (41.7274 mm, 119.7312 mm) | | Point 17: | (43.2271 mm, 119.5875 mm) | | Point 18: | (44.7108 mm, 119.3257 mm) | | Point 19: | (46.1691 mm, 118.9475 mm) | | Point 20: | (47.5930 mm, 118.4552 mm) | | Point 21: | (48.9735 mm, 117.8519 mm) | | Point 22: | (50.3020 mm, 117.1414 mm) | | Point 23: | (51.5703 mm, 116.3282 mm) | | Point 24: | (91.8529 mm, 90.3258 mm) | | Point 25: | (92.8301 mm, 89.6690 mm) | | Point 26: | (93.7823 mm, 88.9765 mm) | | Point 27: | (94.7081 mm, 88.2492 mm) | | Point 28: | (95.6063 mm, 87.4880 mm) | | Point 29: | (96.4757 mm, 86.6940 mm) | | Point 30: | (97.3151 mm, 85.8683 mm) | | Point 31: | (98.1232 mm, 85.0121 mm) | | Point 32: | (98.8991 mm, 84.1266 mm) | | Point 33: | (100.3497 mm, 82.2722 mm) | | Point 34: | (110.8384 mm, 67.9644 mm) | | Point 35: | (111.2294 mm, 67.4452 mm) | | Point 36: | (111.6335 mm, 66.9361 mm) | | Point 37: | (112.0505 mm, 66.4376 mm) | | Point 38: | (112.4801 mm, 65.9499 mm) | | Point 39: | (112.9221 mm, 65.4733 mm) | | Point 40: | (113.3761 mm, 65.0082 mm) | | Point 41: | (113.8418 mm, 64.5549 mm) | | Point 42: | (114.3190 mm, 64.1136 mm) | | Point 43: | (115.3065 mm, 63.2684 mm) | | Point 44: | (127.3064 mm, 53.5185 mm) | | Point 45: | (113.0278 mm, 45.0285 mm) | | Point 46: | (112.5278 mm, 44.7233 mm) | | Point 47: | (112.0350 mm, 44.4067 mm) | | Point 48: | (111.5496 mm, 44.0789 mm) | | Point 49: | (111.0719 mm, 43.7399 mm) | | Point 50: | (110.6022 mm, 43.3900 mm) | | Point 51: | (110.1406 mm, 43.0294 mm) | | Point 52: | (109.6875 mm, 42.6582 mm) | | Point 53: | (109.2430 mm, 42.2766 mm) | | Point 54: | (108.8075 mm, 41.8849 mm) | | Point 55: | (108.3812 mm, 41.4833 mm) | | Point 56: | (92.2307 mm, 25.9150 mm) | | Point 57: | (91.3419 mm, 25.2869 mm) | | Point 58: | (90.4271 mm, 24.6975 mm) | | Point 59: | (89.4878 mm, 24.1478 mm) | | Point 60: | (88.5259 mm, 23.6388 mm) | | Point 61: | (87.5430 mm, 23.1716 mm) | | Point 62: | (86.5411 mm, 22.7468 mm) | | Point 63: | (85.5218 mm, 22.3654 mm) | | Point 64: | (84.4872 mm, 22.0279 mm) | | Point 65: | (83.4390 mm, 21.7351 mm) | | Point 66: | (82.3793 mm, 21.4875 mm) | | Point 67: | (58.8884 mm, 16.5265 mm) | | Point 68: | (57.7773 mm, 16.3221 mm) | | Point 69: | (56.6582 mm, 16.1672 mm) | | Point 70: | (55.5334 mm, 16.0622 mm) | | Point 71: | (54.4050 mm, 16.0074 mm) | | Point 72: | (53.2753 mm, 16.0028 mm) | | Point 73: | (52.1465 mm, 16.0484 mm) | | Point 74: | (51.0208 mm, 16.1442 mm) | | Point 75: | (49.9005 mm, 16.2899 mm) | | Point 76: | (48.7879 mm, 16.4853 mm) | | Point 77: | (47.6849 mm, 16.7300 mm) | | Point 78: | (35.0810 mm, 19.8220 mm) | | Point 79: | (34.3063 mm, 19.9765 mm) | | Point 80: | (33.5215 mm, 20.0664 mm) | | Point 81: | (32.7319 mm, 20.0909 mm) | | Point 82: | (31.9430 mm, 20.0498 mm) | | Point 83: | (31.1602 mm, 19.9436 mm) | | Point 84: | (30.3890 mm, 19.7729 mm) | | Point 85: | (29.6345 mm, 19.5388 mm) | | Point 86: | (28.9020 mm, 19.2430 mm) | | Point 87: | (27.5229 mm, 18.4749 mm) | | Point 88: | (0.0000 mm, 0.0000 mm) | | Width: | 5.0121 inches (127.3064 mm) | | Height: | 4.7148 inches (119.7560 mm) |
