Rocketry Parts Database >> Fins >>

1/2 Scale NIKE-HERC Trapezoid Fi Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:G10 (PML 0.125)

Download as PDF

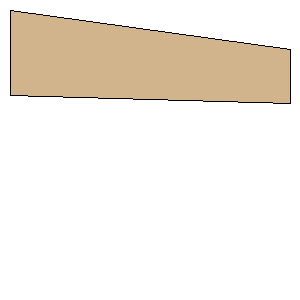

Root Chord:4.9500 inches (125.7300 mm)
Tip Chord:3.1500 inches (80.0100 mm)
Sweep Distance:2.2800 inches (57.9120 mm)
SemiSpan:16.2000 inches (411.4800 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(411.4800 mm, 57.9120 mm)
Point 3:(411.4800 mm, 137.9220 mm)
Point 4:(0.0000 mm, 125.7300 mm)
Width:16.2000 inches (411.4800 mm)
Height:5.4300 inches (137.9220 mm)
