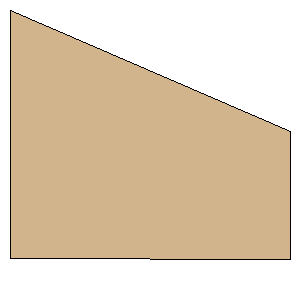

1/2 Scale NIKE-HERC Trapezoid Fi Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 (PML 0.125) |
Download as PDF | Root Chord: | 22.8000 inches (579.1200 mm) | | Tip Chord: | 11.7000 inches (297.1800 mm) | | Sweep Distance: | 11.1600 inches (283.4640 mm) | | SemiSpan: | 25.6500 inches (651.5100 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (651.5100 mm, 283.4640 mm) | | Point 3: | (651.5100 mm, 580.6440 mm) | | Point 4: | (0.0000 mm, 579.1200 mm) | | Width: | 25.6500 inches (651.5100 mm) | | Height: | 22.8600 inches (580.6440 mm) |
