Flyin' Fightin' Irish Freeform F Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:G10 (PML 0.125)

Download as PDF

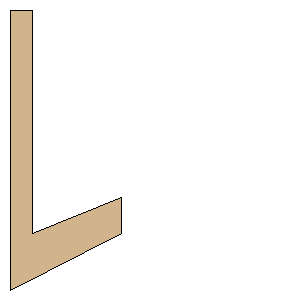

Point 1:(0.0000 mm, 95.2500 mm)
Point 2:(38.1000 mm, 76.1159 mm)
Point 3:(38.1000 mm, 63.6216 mm)
Point 4:(7.6200 mm, 76.1159 mm)
Point 5:(7.6200 mm, 0.1509 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:3.7500 inches (95.2500 mm)
Height:3.7500 inches (95.2500 mm)
