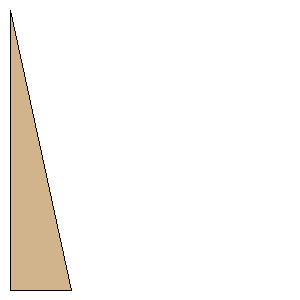

1/2 Scale NIKE-HERC Trapezoid Fi Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 (PML 0.125) |
Download as PDF | Root Chord: | 18.4500 inches (468.6300 mm) | | Tip Chord: | 0.0000 inches (0.0000 mm) | | Sweep Distance: | 18.4500 inches (468.6300 mm) | | SemiSpan: | 4.0500 inches (102.8700 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (102.8700 mm, 468.6300 mm) | | Point 3: | (102.8700 mm, 468.6300 mm) | | Point 4: | (0.0000 mm, 468.6300 mm) | | Width: | 4.0500 inches (102.8700 mm) | | Height: | 18.4500 inches (468.6300 mm) |
