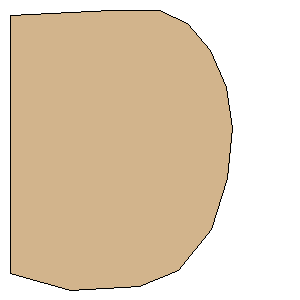

WinDoze 2000 Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Lexan |
Download as PDF | Point 1: | (0.0000 mm, 126.6838 mm) | | Point 2: | (29.7286 mm, 134.5450 mm) | | Point 3: | (63.4196 mm, 133.0476 mm) | | Point 4: | (82.5112 mm, 125.1864 mm) | | Point 5: | (98.9823 mm, 104.9718 mm) | | Point 6: | (106.8435 mm, 79.8907 mm) | | Point 7: | (109.0896 mm, 55.1840 mm) | | Point 8: | (106.0948 mm, 34.9694 mm) | | Point 9: | (98.2336 mm, 17.0009 mm) | | Point 10: | (87.0033 mm, 3.8988 mm) | | Point 11: | (73.5269 mm, -2.8394 mm) | | Point 12: | (49.9432 mm, -2.8394 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Width: | 4.9876 inches (126.6838 mm) | | Height: | 5.4088 inches (137.3844 mm) |
