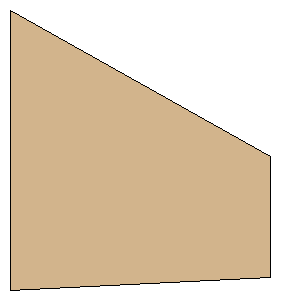

RKT File Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Lexan |
Download as PDF | Root Chord: | 2.8750 inches (73.0250 mm) | | Tip Chord: | 1.2500 inches (31.7500 mm) | | Sweep Distance: | 1.5014 inches (38.1356 mm) | | SemiSpan: | 2.6750 inches (67.9450 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (67.9450 mm, 38.1356 mm) | | Point 3: | (67.9450 mm, 69.8856 mm) | | Point 4: | (0.0000 mm, 73.0250 mm) | | Width: | 2.6750 inches (67.9450 mm) | | Height: | 2.8750 inches (73.0250 mm) |
