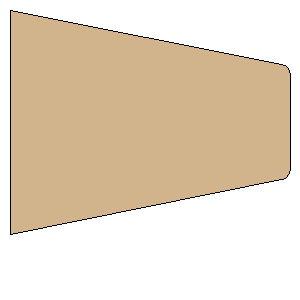

Acme Engineering Acme 38mm Fin C Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Lexan

Download as PDF

Point 1:(0.0000 mm, 101.6000 mm)
Point 2:(123.3250 mm, 76.9351 mm)
Point 3:(123.9300 mm, 76.7701 mm)
Point 4:(124.5070 mm, 76.5238 mm)
Point 5:(125.0450 mm, 76.2008 mm)
Point 6:(125.5340 mm, 75.8072 mm)
Point 7:(125.9640 mm, 75.3505 mm)
Point 8:(126.3270 mm, 74.8391 mm)
Point 9:(126.6170 mm, 74.2828 mm)
Point 10:(126.8290 mm, 73.6920 mm)
Point 11:(127.0000 mm, 72.4519 mm)
Point 12:(127.0000 mm, 29.1481 mm)
Point 13:(126.9570 mm, 28.5222 mm)
Point 14:(126.8290 mm, 27.9080 mm)
Point 15:(126.6170 mm, 27.3172 mm)
Point 16:(126.3270 mm, 26.7609 mm)
Point 17:(125.9640 mm, 26.2495 mm)
Point 18:(125.5340 mm, 25.7928 mm)
Point 19:(125.0450 mm, 25.3992 mm)
Point 20:(124.5070 mm, 25.0762 mm)
Point 21:(123.3250 mm, 24.6649 mm)
Point 22:(0.0000 mm, 0.0000 mm)
Width:5.0000 inches (127.0000 mm)
Height:4.0000 inches (101.6000 mm)
