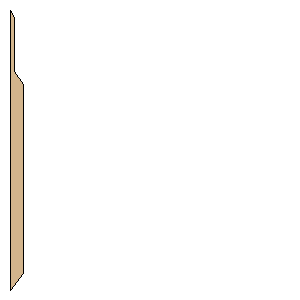

Stanard Missile - RIM 66a Freefo Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | lite ply |
Download as PDF | Point 1: | (0.0000 mm, 431.8000 mm) | | Point 2: | (21.5900 mm, 406.4000 mm) | | Point 3: | (21.5900 mm, 114.3000 mm) | | Point 4: | (6.3500 mm, 95.2500 mm) | | Point 5: | (6.3500 mm, 12.7000 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 17.0000 inches (431.8000 mm) | | Height: | 17.0000 inches (431.8000 mm) |
