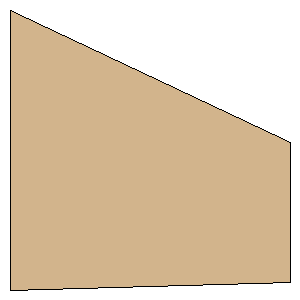

Custom lite ply Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | lite ply |
Download as PDF | Root Chord: | 3.2500 inches (82.5500 mm) | | Tip Chord: | 1.6250 inches (41.2750 mm) | | Sweep Distance: | 1.5419 inches (39.1643 mm) | | SemiSpan: | 3.2500 inches (82.5500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (82.5500 mm, 39.1643 mm) | | Point 3: | (82.5500 mm, 80.4393 mm) | | Point 4: | (0.0000 mm, 82.5500 mm) | | Width: | 3.2500 inches (82.5500 mm) | | Height: | 3.2500 inches (82.5500 mm) |
