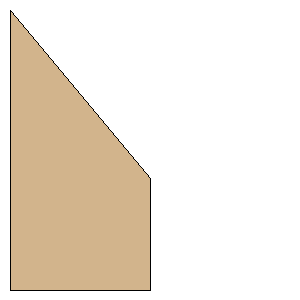

Rocket Dynamic Systems Aries Tra Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Maple (Hard)

Download as PDF

Root Chord:10.0000 inches (254.0000 mm)
Tip Chord:4.0000 inches (101.6000 mm)
Sweep Distance:6.0000 inches (152.4000 mm)
SemiSpan:5.0000 inches (127.0000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(127.0000 mm, 152.4000 mm)
Point 3:(127.0000 mm, 254.0000 mm)
Point 4:(0.0000 mm, 254.0000 mm)
Width:5.0000 inches (127.0000 mm)
Height:10.0000 inches (254.0000 mm)
