Rocketry Parts Database >> Fins >>

3" Spunik Satellite Trapezoid Fi Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Maple (Hard)

Download as PDF

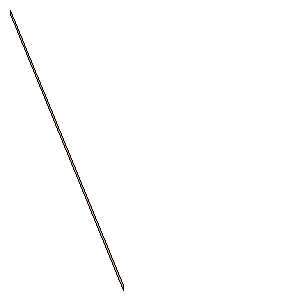

Root Chord:0.1880 inches (4.7752 mm)
Tip Chord:0.1880 inches (4.7752 mm)
Sweep Distance:12.8645 inches (326.7583 mm)
SemiSpan:5.3000 inches (134.6200 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(134.6200 mm, 326.7583 mm)
Point 3:(134.6200 mm, 331.5335 mm)
Point 4:(0.0000 mm, 4.7752 mm)
Width:5.3000 inches (134.6200 mm)
Height:13.0525 inches (331.5335 mm)
