Rocketry Parts Database >> Fins >>

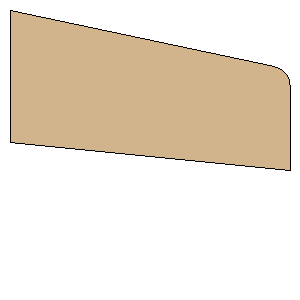

Centuri - Hummingbird Freeform F Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Paper

Download as PDF

Point 1:(0.0000 mm, 42.1640 mm)
Point 2:(88.9000 mm, 50.8000 mm)
Point 3:(88.9000 mm, 24.1834 mm)
Point 4:(88.8414 mm, 23.3227 mm)
Point 5:(88.6666 mm, 22.4778 mm)
Point 6:(88.3790 mm, 21.6644 mm)
Point 7:(87.9837 mm, 20.8976 mm)
Point 8:(87.4882 mm, 20.1913 mm)
Point 9:(86.9015 mm, 19.5588 mm)
Point 10:(86.2344 mm, 19.0116 mm)
Point 11:(85.4994 mm, 18.5599 mm)
Point 12:(84.7099 mm, 18.2121 mm)
Point 13:(83.8805 mm, 17.9744 mm)
Point 14:(0.0000 mm, 0.0000 mm)
Width:3.5000 inches (88.9000 mm)
Height:2.0000 inches (50.8000 mm)
