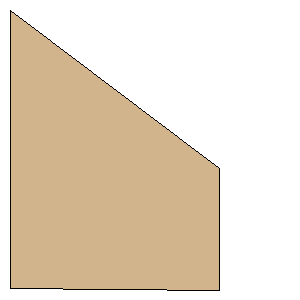

Gnat Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Paper |
Download as PDF | Root Chord: | 3.4790 inches (88.3666 mm) | | Tip Chord: | 1.5210 inches (38.6334 mm) | | Sweep Distance: | 1.9765 inches (50.2031 mm) | | SemiSpan: | 2.6110 inches (66.3194 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (66.3194 mm, 50.2031 mm) | | Point 3: | (66.3194 mm, 88.8365 mm) | | Point 4: | (0.0000 mm, 88.3666 mm) | | Width: | 2.6110 inches (66.3194 mm) | | Height: | 3.4975 inches (88.8365 mm) |
