Noris Rocketry Ariane Trapezoid Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Paper |

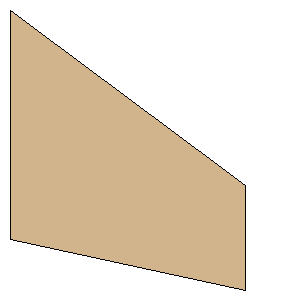

Download as PDF | Root Chord: | 1.4200 inches (36.0680 mm) | | Tip Chord: | 0.6450 inches (16.3830 mm) | | Sweep Distance: | 1.0850 inches (27.5590 mm) | | SemiSpan: | 1.4550 inches (36.9570 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (36.9570 mm, 27.5590 mm) | | Point 3: | (36.9570 mm, 43.9420 mm) | | Point 4: | (0.0000 mm, 36.0680 mm) | | Width: | 1.4550 inches (36.9570 mm) | | Height: | 1.7300 inches (43.9420 mm) |
