Rocketry Parts Database >> Fins >>

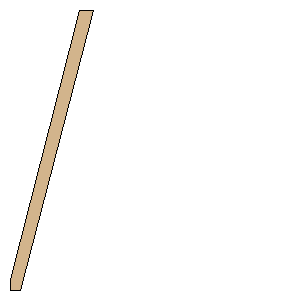

ASM 3in.rkt Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Pine (White Northern)

Download as PDF

Point 1:(0.0000 mm, 1.5875 mm)
Point 2:(2.3813 mm, 1.5875 mm)
Point 3:(19.0500 mm, -61.9125 mm)
Point 4:(15.8750 mm, -61.9125 mm)
Point 5:(0.0000 mm, -0.7938 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:0.7500 inches (19.0500 mm)
Height:2.5000 inches (63.5000 mm)
