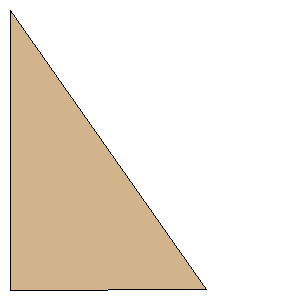

scratch_machword.rkt Trapezoid F Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Pine (White Northern) |
Download as PDF | Root Chord: | 2.5000 inches (63.5000 mm) | | Tip Chord: | 0.0000 inches (0.0000 mm) | | Sweep Distance: | 2.4993 inches (63.4822 mm) | | SemiSpan: | 1.7500 inches (44.4500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (44.4500 mm, 63.4822 mm) | | Point 3: | (44.4500 mm, 63.4822 mm) | | Point 4: | (0.0000 mm, 63.5000 mm) | | Width: | 1.7500 inches (44.4500 mm) | | Height: | 2.5000 inches (63.5000 mm) |
