Rocketry Parts Database >> Fins >>

Estes USS Atlantis Trapezoid Fin Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Pine (White Western)

Download as PDF

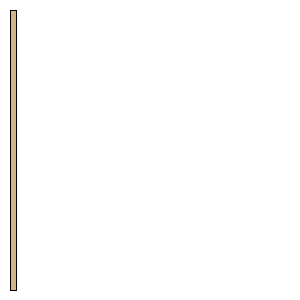

Root Chord:5.2500 inches (133.3500 mm)
Tip Chord:5.2500 inches (133.3500 mm)
Sweep Distance:0.0000 inches (0.0000 mm)
SemiSpan:0.1250 inches (3.1750 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(3.1750 mm, 0.0000 mm)
Point 3:(3.1750 mm, 133.3500 mm)
Point 4:(0.0000 mm, 133.3500 mm)
Width:0.1250 inches (3.1750 mm)
Height:5.2500 inches (133.3500 mm)
