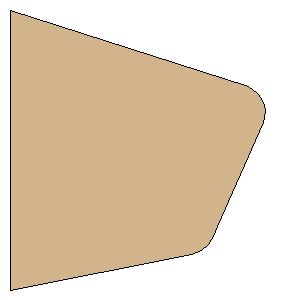

Estes Panavia Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Plywood (birch) |
Download as PDF | Point 1: | (0.0000 mm, 123.8250 mm) | | Point 2: | (80.3672 mm, 108.0490 mm) | | Point 3: | (84.8320 mm, 106.2630 mm) | | Point 4: | (87.8086 mm, 103.5840 mm) | | Point 5: | (90.1898 mm, 100.0130 mm) | | Point 6: | (91.6781 mm, 95.8453 mm) | | Point 7: | (112.2160 mm, 49.7086 mm) | | Point 8: | (112.8120 mm, 44.9461 mm) | | Point 9: | (112.5140 mm, 42.2672 mm) | | Point 10: | (111.3230 mm, 39.2906 mm) | | Point 11: | (109.2400 mm, 36.9094 mm) | | Point 12: | (105.3700 mm, 33.9328 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Width: | 4.8750 inches (123.8250 mm) | | Height: | 4.8750 inches (123.8250 mm) |
