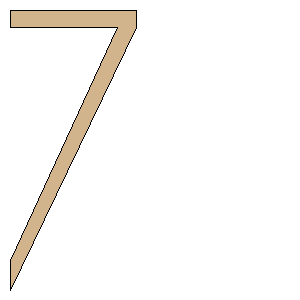

Custom Polystyrene PS Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Polystyrene PS |
Download as PDF | Point 1: | (0.0000 mm, 1.5240 mm) | | Point 2: | (9.1440 mm, 1.5240 mm) | | Point 3: | (0.0000 mm, 21.3360 mm) | | Point 4: | (0.0000 mm, 23.8760 mm) | | Point 5: | (10.7950 mm, 1.5240 mm) | | Point 6: | (10.7950 mm, 0.0000 mm) | | Point 7: | (0.0000 mm, 0.0000 mm) | | Width: | 0.4250 inches (10.7950 mm) | | Height: | 0.9400 inches (23.8760 mm) |
