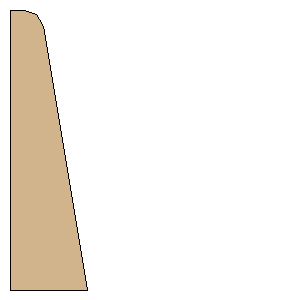

Custom Polystyrene PS Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Polystyrene PS |
Download as PDF | Point 1: | (0.0000 mm, 23.0200 mm) | | Point 2: | (6.3500 mm, 23.0200 mm) | | Point 3: | (2.7356 mm, 1.3259 mm) | | Point 4: | (2.1946 mm, 0.3759 mm) | | Point 5: | (1.1684 mm, 0.0000 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Point 7: | (0.0000 mm, 0.0000 mm) | | Point 8: | (0.0000 mm, 0.0000 mm) | | Point 9: | (0.0000 mm, 0.0000 mm) | | Point 10: | (0.0000 mm, 0.0000 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Width: | 0.9063 inches (23.0200 mm) | | Height: | 0.9063 inches (23.0200 mm) |
