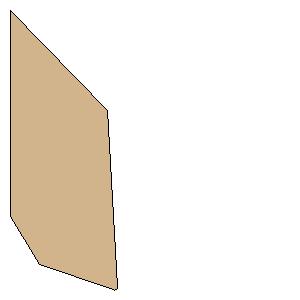

Custom Polystyrene PS Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Polystyrene PS |
Download as PDF | Point 1: | (0.0000 mm, 66.0400 mm) | | Point 2: | (9.3980 mm, 81.2800 mm) | | Point 3: | (33.1864 mm, 89.4913 mm) | | Point 4: | (33.4819 mm, 89.5417 mm) | | Point 5: | (33.7780 mm, 89.4947 mm) | | Point 6: | (34.0433 mm, 89.3552 mm) | | Point 7: | (34.2498 mm, 89.1380 mm) | | Point 8: | (34.4078 mm, 88.5680 mm) | | Point 9: | (31.2420 mm, 32.2580 mm) | | Point 10: | (0.0000 mm, 0.0000 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Point 12: | (0.0000 mm, 0.0000 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Point 14: | (0.0000 mm, 0.0000 mm) | | Point 15: | (0.0000 mm, 0.0000 mm) | | Width: | 2.6000 inches (66.0400 mm) | | Height: | 3.5253 inches (89.5417 mm) |
