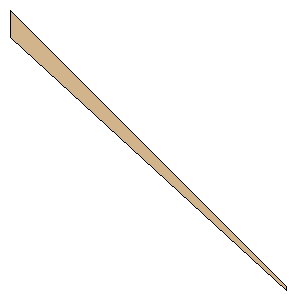

Custom Polystyrene PS Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Polystyrene PS |
Download as PDF | Root Chord: | 0.0750 inches (1.9050 mm) | | Tip Chord: | 0.0100 inches (0.2540 mm) | | Sweep Distance: | 0.7500 inches (19.0500 mm) | | SemiSpan: | 0.7500 inches (19.0500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (19.0500 mm, 19.0500 mm) | | Point 3: | (19.0500 mm, 19.3040 mm) | | Point 4: | (0.0000 mm, 1.9050 mm) | | Width: | 0.7500 inches (19.0500 mm) | | Height: | 0.7600 inches (19.3040 mm) |
