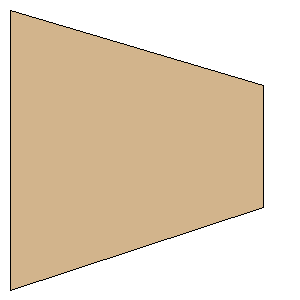

Estes - Python Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Polystyrene PS |
Download as PDF | Root Chord: | 4.0000 inches (101.6000 mm) | | Tip Chord: | 1.7500 inches (44.4500 mm) | | Sweep Distance: | 1.0738 inches (27.2745 mm) | | SemiSpan: | 3.6250 inches (92.0750 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (92.0750 mm, 27.2745 mm) | | Point 3: | (92.0750 mm, 71.7245 mm) | | Point 4: | (0.0000 mm, 101.6000 mm) | | Width: | 3.6250 inches (92.0750 mm) | | Height: | 4.0000 inches (101.6000 mm) |
