Rocketry Parts Database >> Fins >>

Estes Honest John Trapezoid Fin Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Polystyrene PS

Download as PDF

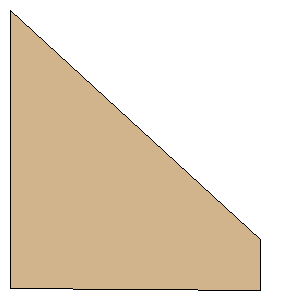

Root Chord:5.0000 inches (127.0000 mm)
Tip Chord:0.9000 inches (22.8600 mm)
Sweep Distance:4.1250 inches (104.7750 mm)
SemiSpan:4.5000 inches (114.3000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(114.3000 mm, 104.7750 mm)
Point 3:(114.3000 mm, 127.6350 mm)
Point 4:(0.0000 mm, 127.0000 mm)
Width:4.5000 inches (114.3000 mm)
Height:5.0250 inches (127.6350 mm)
