quest_triton-x.rkt Trapezoid Fin Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Polystyrene PS |

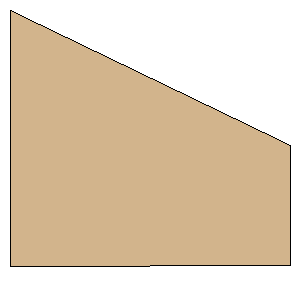

Download as PDF | Root Chord: | 2.0650 inches (52.4510 mm) | | Tip Chord: | 0.9600 inches (24.3840 mm) | | Sweep Distance: | 1.0913 inches (27.7190 mm) | | SemiSpan: | 2.2500 inches (57.1500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (57.1500 mm, 27.7190 mm) | | Point 3: | (57.1500 mm, 52.1030 mm) | | Point 4: | (0.0000 mm, 52.4510 mm) | | Width: | 2.2500 inches (57.1500 mm) | | Height: | 2.0650 inches (52.4510 mm) |
