Rocketry Parts Database >> Fins >>

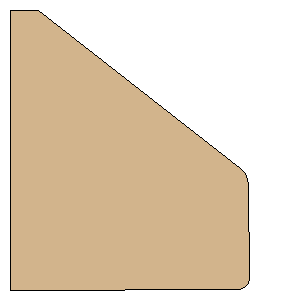

Sky Long March 3 Freeform Fin Se Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Polystyrene PS

Download as PDF

Point 1:(0.0000 mm, 40.0050 mm)
Point 2:(32.7234 mm, 39.9157 mm)
Point 3:(33.4871 mm, 39.7082 mm)
Point 4:(34.0438 mm, 39.1455 mm)
Point 5:(34.2432 mm, 38.3796 mm)
Point 6:(34.1376 mm, 25.1419 mm)
Point 7:(33.9939 mm, 24.1976 mm)
Point 8:(33.5760 mm, 23.3388 mm)
Point 9:(32.9215 mm, 22.6432 mm)
Point 10:(4.0386 mm, 0.0000 mm)
Point 11:(0.0000 mm, 0.0000 mm)
Width:1.5750 inches (40.0050 mm)
Height:1.5750 inches (40.0050 mm)
