Rocketry Parts Database >> Fins >>

SHR 1/48th Scale Saturn V Freefo Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Polystyrene PS

Download as PDF

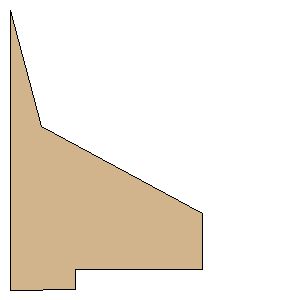

Point 1:(0.0000 mm, 159.8520 mm)
Point 2:(37.2236 mm, 159.3350 mm)
Point 3:(37.2352 mm, 148.1690 mm)
Point 4:(109.8750 mm, 148.2450 mm)
Point 5:(109.8750 mm, 116.1340 mm)
Point 6:(17.9285 mm, 66.3213 mm)
Point 7:(0.0000 mm, 0.0000 mm)
Width:6.2934 inches (159.8520 mm)
Height:6.2934 inches (159.8520 mm)
