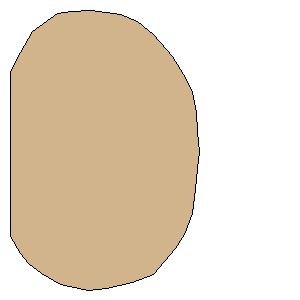

IBM Formatted Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Polystyrene PS |
Download as PDF | Point 1: | (0.0000 mm, 85.7250 mm) | | Point 2: | (5.4561 mm, 94.3055 mm) | | Point 3: | (9.7262 mm, 99.7713 mm) | | Point 4: | (16.2168 mm, 104.7247 mm) | | Point 5: | (25.9528 mm, 110.7028 mm) | | Point 6: | (40.9759 mm, 113.4357 mm) | | Point 7: | (49.9969 mm, 112.4552 mm) | | Point 8: | (63.5285 mm, 109.5135 mm) | | Point 9: | (74.5107 mm, 105.1991 mm) | | Point 10: | (80.3940 mm, 98.7275 mm) | | Point 11: | (85.6890 mm, 92.0597 mm) | | Point 12: | (90.3956 mm, 84.8037 mm) | | Point 13: | (94.7100 mm, 73.6254 mm) | | Point 14: | (96.2789 mm, 61.0744 mm) | | Point 15: | (97.4556 mm, 50.2883 mm) | | Point 16: | (98.4250 mm, 41.6974 mm) | | Point 17: | (97.4556 mm, 31.4618 mm) | | Point 18: | (96.6711 mm, 21.0679 mm) | | Point 19: | (94.5139 mm, 11.0663 mm) | | Point 20: | (90.1995 mm, 1.4569 mm) | | Point 21: | (84.5123 mm, -7.9563 mm) | | Point 22: | (74.5107 mm, -19.1346 mm) | | Point 23: | (66.2741 mm, -25.8023 mm) | | Point 24: | (57.2530 mm, -29.5284 mm) | | Point 25: | (42.3487 mm, -31.8818 mm) | | Point 26: | (32.1509 mm, -31.0973 mm) | | Point 27: | (24.6988 mm, -30.1168 mm) | | Point 28: | (11.5594 mm, -20.8996 mm) | | Point 29: | (5.6269 mm, -9.8858 mm) | | Point 30: | (0.0000 mm, 0.0000 mm) | | Width: | 3.8750 inches (98.4250 mm) | | Height: | 5.7212 inches (145.3175 mm) |
