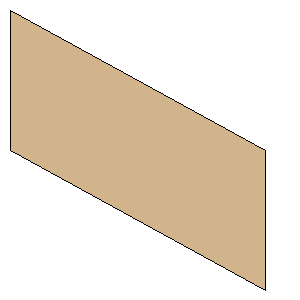

TARDIS Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Polystyrene PS |
Download as PDF | Root Chord: | 1.4374 inches (36.5100 mm) | | Tip Chord: | 1.4374 inches (36.5100 mm) | | Sweep Distance: | 1.4374 inches (36.5100 mm) | | SemiSpan: | 2.6252 inches (66.6801 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (66.6801 mm, 36.5100 mm) | | Point 3: | (66.6801 mm, 73.0199 mm) | | Point 4: | (0.0000 mm, 36.5100 mm) | | Width: | 2.6252 inches (66.6801 mm) | | Height: | 2.8748 inches (73.0199 mm) |
