Rocketry Parts Database >> Fins >>

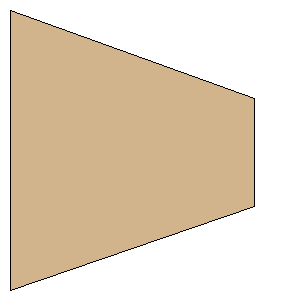

oop_estes_seahawk.rkt Trapezoid Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Polystyrene PS

Download as PDF

Root Chord:3.9000 inches (99.0600 mm)
Tip Chord:1.5000 inches (38.1000 mm)
Sweep Distance:1.2370 inches (31.4198 mm)
SemiSpan:3.4000 inches (86.3600 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(86.3600 mm, 31.4198 mm)
Point 3:(86.3600 mm, 69.5198 mm)
Point 4:(0.0000 mm, 99.0600 mm)
Width:3.4000 inches (86.3600 mm)
Height:3.9000 inches (99.0600 mm)
