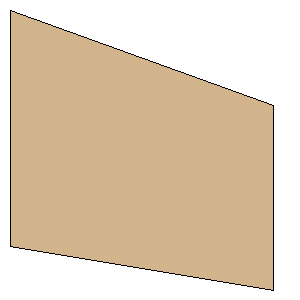

Estes R2-D2 Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Polystyrene PS |
Download as PDF | Root Chord: | 1.8000 inches (45.7200 mm) | | Tip Chord: | 1.4000 inches (35.5600 mm) | | Sweep Distance: | 0.7279 inches (18.4887 mm) | | SemiSpan: | 2.0000 inches (50.8000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (50.8000 mm, 18.4887 mm) | | Point 3: | (50.8000 mm, 54.0487 mm) | | Point 4: | (0.0000 mm, 45.7200 mm) | | Width: | 2.0000 inches (50.8000 mm) | | Height: | 2.1279 inches (54.0487 mm) |
