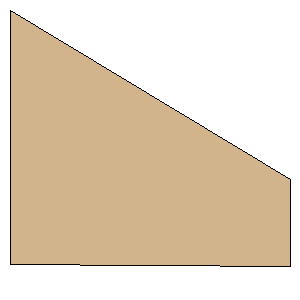

Estes Saturn V 1/100 scale 30th Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Vac-Form Plastic |
Download as PDF | Root Chord: | 2.0000 inches (50.8000 mm) | | Tip Chord: | 0.6880 inches (17.4752 mm) | | Sweep Distance: | 1.3280 inches (33.7312 mm) | | SemiSpan: | 2.2000 inches (55.8800 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (55.8800 mm, 33.7312 mm) | | Point 3: | (55.8800 mm, 51.2064 mm) | | Point 4: | (0.0000 mm, 50.8000 mm) | | Width: | 2.2000 inches (55.8800 mm) | | Height: | 2.0160 inches (51.2064 mm) |
