BNC-R1 Freeform Fin Set Freeform Fin Set| Manufacturer: | Dick Stafford | | Part Number: | DS-Fin-001 | | Style: | Freeform Fin Set | | Material: | Ash |

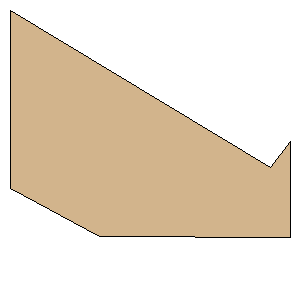

Download as PDF | Point 1: | (0.0000 mm, 95.4270 mm) | | Point 2: | (47.6010 mm, 120.7210 mm) | | Point 3: | (149.3630 mm, 121.5190 mm) | | Point 4: | (149.3630 mm, 69.9300 mm) | | Point 5: | (139.1960 mm, 83.8630 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 5.8804 inches (149.3630 mm) | | Height: | 4.7842 inches (121.5190 mm) |
