Rocketry Parts Database >> Fins >>

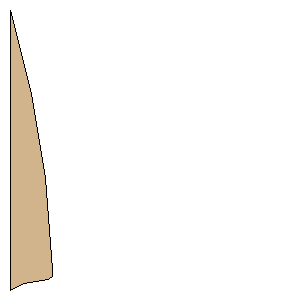

Arrow Freeform Fin Set Freeform Fin Set

Manufacturer:DIY
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 127.0000 mm)
Point 2:(6.3500 mm, 123.8250 mm)
Point 3:(17.4752 mm, 122.2502 mm)
Point 4:(19.0500 mm, 120.6500 mm)
Point 5:(19.0500 mm, 117.4750 mm)
Point 6:(15.8750 mm, 76.2000 mm)
Point 7:(9.5250 mm, 38.1000 mm)
Point 8:(0.0000 mm, 0.0000 mm)
Width:5.0000 inches (127.0000 mm)
Height:5.0000 inches (127.0000 mm)
