Rocketry Parts Database >> Fins >>

Estes - Orbital Transport Freefo Freeform Fin Set

Manufacturer:DynaStar
Part Number:Snarky Main Wing
Style:Freeform Fin Set
Material:Balsa

Download as PDF

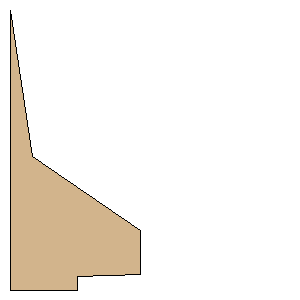

Point 1:(0.0000 mm, 193.6750 mm)
Point 2:(46.7360 mm, 193.6750 mm)
Point 3:(46.7360 mm, 184.1500 mm)
Point 4:(90.4240 mm, 182.6260 mm)
Point 5:(90.4240 mm, 152.4000 mm)
Point 6:(15.2400 mm, 101.6000 mm)
Point 7:(0.0000 mm, 0.0000 mm)
Width:7.6250 inches (193.6750 mm)
Height:7.6250 inches (193.6750 mm)
