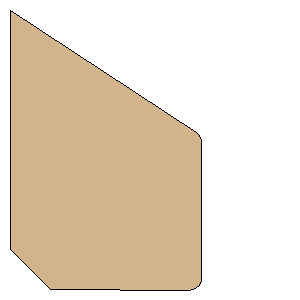

Cosmodrome Rocketry Aerobee Hi F Freeform Fin Set| Manufacturer: | Estes | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 127.0000 mm) | | Point 2: | (21.5900 mm, 148.5900 mm) | | Point 3: | (95.4841 mm, 148.6850 mm) | | Point 4: | (97.4522 mm, 148.3750 mm) | | Point 5: | (99.2274 mm, 147.4700 mm) | | Point 6: | (100.6350 mm, 146.0600 mm) | | Point 7: | (101.5360 mm, 144.2830 mm) | | Point 8: | (101.8420 mm, 142.3140 mm) | | Point 9: | (101.8620 mm, 70.6076 mm) | | Point 10: | (101.7390 mm, 69.3610 mm) | | Point 11: | (101.3730 mm, 68.1628 mm) | | Point 12: | (100.7790 mm, 67.0597 mm) | | Point 13: | (99.9808 mm, 66.0946 mm) | | Point 14: | (99.0082 mm, 65.3051 mm) | | Point 15: | (0.0000 mm, 0.0000 mm) | | Width: | 5.0000 inches (127.0000 mm) | | Height: | 5.8537 inches (148.6850 mm) |
