Rocketry Parts Database >> Fins >>

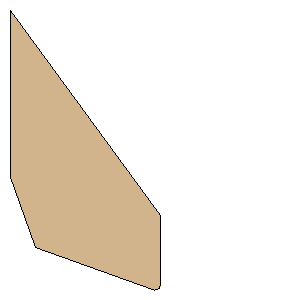

Astron Beta K-45 Freeform Fin Se Freeform Fin Set

Manufacturer:Estes
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 41.2750 mm)
Point 2:(6.3500 mm, 58.7375 mm)
Point 3:(35.1824 mm, 69.0876 mm)
Point 4:(35.4766 mm, 69.1624 mm)
Point 5:(35.7798 mm, 69.1798 mm)
Point 6:(36.0806 mm, 69.1391 mm)
Point 7:(36.3683 mm, 69.0420 mm)
Point 8:(36.6322 mm, 68.8918 mm)
Point 9:(36.8627 mm, 68.6942 mm)
Point 10:(37.0513 mm, 68.4563 mm)
Point 11:(37.1912 mm, 68.1868 mm)
Point 12:(37.2772 mm, 67.8957 mm)
Point 13:(37.3063 mm, 67.5934 mm)
Point 14:(37.3063 mm, 50.8000 mm)
Point 15:(0.0000 mm, 0.0000 mm)
Width:1.6250 inches (41.2750 mm)
Height:2.7236 inches (69.1798 mm)
