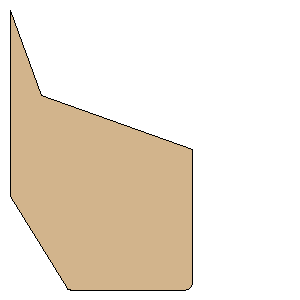

Estes Astron Beta Freeform Fin S Freeform Fin Set

Manufacturer:Estes
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 38.1000 mm)
Point 2:(11.6731 mm, 56.7769 mm)
Point 3:(11.7190 mm, 56.8428 mm)
Point 4:(11.7714 mm, 56.9037 mm)
Point 5:(11.8297 mm, 56.9590 mm)
Point 6:(11.8932 mm, 57.0081 mm)
Point 7:(11.9614 mm, 57.0505 mm)
Point 8:(12.0335 mm, 57.0858 mm)
Point 9:(12.1088 mm, 57.1137 mm)
Point 10:(12.1866 mm, 57.1338 mm)
Point 11:(12.2660 mm, 57.1459 mm)
Point 12:(12.3462 mm, 57.1500 mm)
Point 13:(35.7188 mm, 57.1500 mm)
Point 14:(35.9671 mm, 57.1305 mm)
Point 15:(36.2093 mm, 57.0723 mm)
Point 16:(36.4395 mm, 56.9770 mm)
Point 17:(36.6519 mm, 56.8468 mm)
Point 18:(36.8413 mm, 56.6850 mm)
Point 19:(37.0031 mm, 56.4956 mm)
Point 20:(37.1332 mm, 56.2832 mm)
Point 21:(37.2286 mm, 56.0531 mm)
Point 22:(37.2867 mm, 55.8108 mm)
Point 23:(37.3063 mm, 55.5625 mm)
Point 24:(37.3063 mm, 28.4480 mm)
Point 25:(6.3500 mm, 17.4625 mm)
Point 26:(0.0000 mm, 0.0000 mm)
Width:1.5000 inches (38.1000 mm)
Height:2.2500 inches (57.1500 mm)
